單模版本
保偏版本
不同波長可選
BF-PL-NL 系列光纖布拉格光柵激光器是專為光學測量和通信而設計的單頻激光二極管模塊。 該激光器采用 14 針標準蝶形封裝，帶有監控光電二極管和熱電冷卻器 (TEC)。
Optical Characteristics (at 25 °C laser temperature)
|
Parameter |
Symbol |
Condition |
Min. |
Typical |
Max. |
Unit |
|
Center Wavelength |
λc |
TL=15～35℃ CW |
775 |
780 |
785 |
nm |
|
Peak Optical Output Power |
PO |
- |
- |
10 |
20 |
mW |
|
Spectral linewidth |
LW |
- |
- |
1 |
10 |
MHZ |
|
Relative Intensity Noise |
RIN |
CW，output power 5mW |
- |
- |
-135 |
db/HZ |
|
Side-mode Suppression Ratio |
SMSR |
CW |
30 |
40 |
- |
dB |
|
Polarization Extinction Ratio |
ER |
- |
20 |
- |
- |
dB |
|
Wavelength drift with case (-10 to 70 oC) temperature |
△λ |
TL=15～35℃ |
- |
- |
±30 |
pm |
|
Wavelength Temperature coefficient |
Δλ/ΔT |
TL=15～35℃ |
- |
65 |
80 |
pm/oC |
|
Wavelength Current coefficient |
Δλ/ΔΙ |
- |
- |
1.0 |
2 |
pm/mA |
|
Tuning Range(For PZT Version) |
Δf |
|
0.5 |
|
1 |
nm |
|
PZT Driving Voltage( PZT Version) |
VT |
|
0 |
|
150 |
V |
|
Mode Hope free Range |
ΔI |
|
|
30 |
|
mA |
Electrical Characteristics (at 25 °C laser temperature)
|
Parameter |
Symbol |
Condition |
Min. |
Typical |
Max. |
Unit |
|
Threshold Current |
ITH |
- |
- |
45 |
65 |
mA |
|
Operating current |
Iop |
CW |
- |
60 |
120 |
mA |
|
Slope Efficiency |
? |
CW output power 30 mW |
0.064 |
0.3 |
0.4 |
mW/mA |
|
TEC set temperature |
Ts |
- |
15 |
- |
35 |
℃ |
|
Laser Forward Voltage |
VF |
CW output power@30 mW |
- |
1.3 |
2.5 |
V |
|
Monitor Dark Current |
ID |
- |
- |
- |
0.1 |
μA |
|
Thermistor Current |
ITC |
- |
10 |
- |
100 |
μA |
|
Thermistor Resistance |
RTH |
TLD=25°C |
9.5 |
10 |
10.5 |
KΩ |
|
TEC Current |
ITEC |
TLD=25°C, TC=70°C |
- |
- |
1.8 |
A |
|
TEC Voltage |
VTEC |
IF=EOL, TC=70°C |
- |
- |
3.5 |
V |

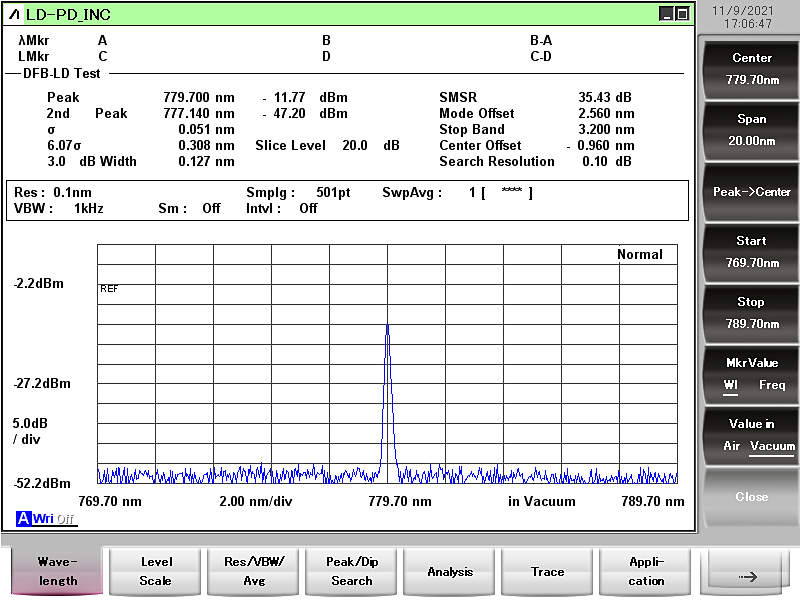

Spectrum

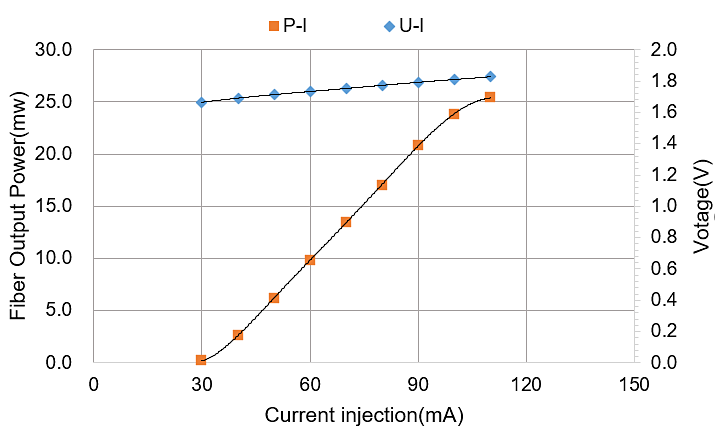

L-I Curve

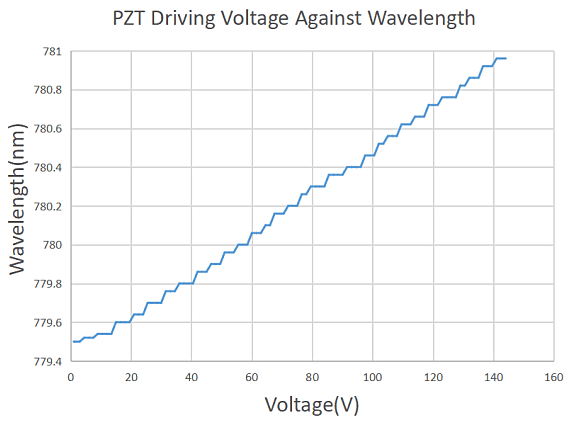

Wavelength VS PZT Voltage

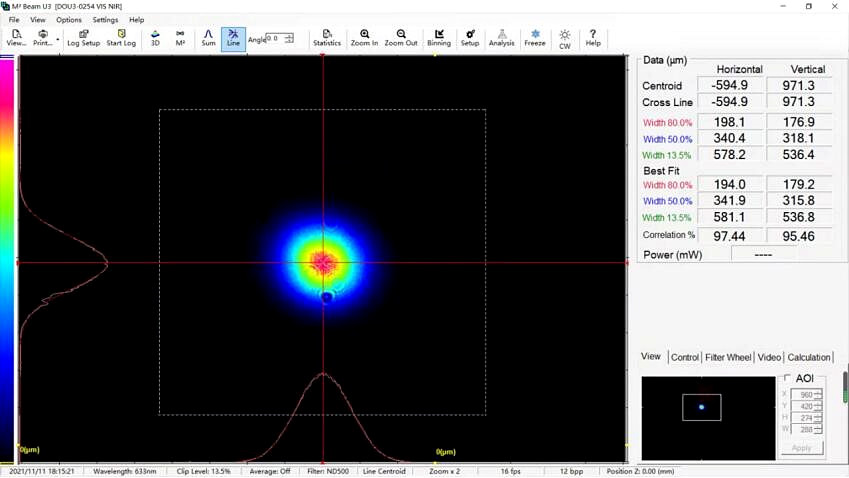

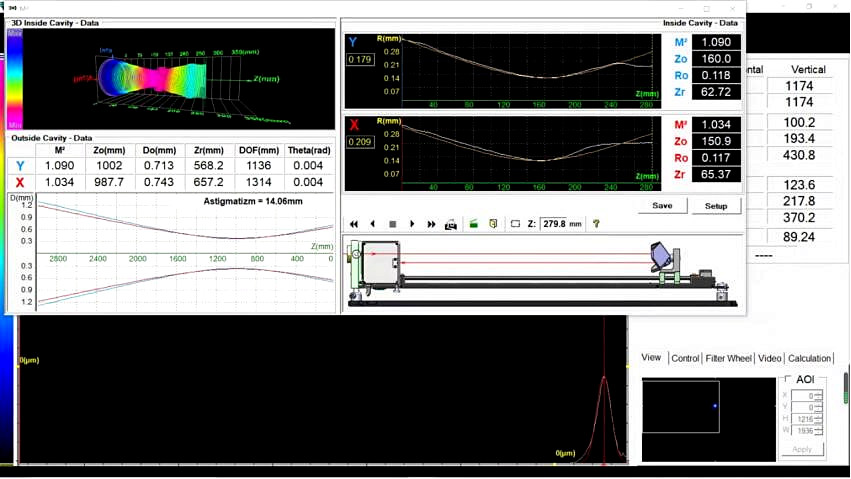

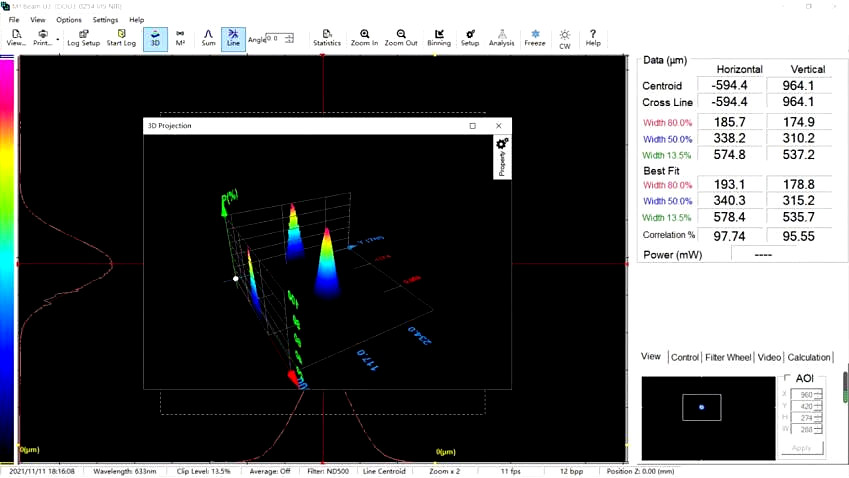

Beam Quality(M2,2D/3D Beam）
Fiber Pigtail Specifications
|
Parameters |
Description |
|
Fiber Type |
PM fiber |
|
Jacket Type |
900μm loose tube |
|
Pigtail Length |
1.0±0.1m |
|
Connector Type |
FC/APC |
|

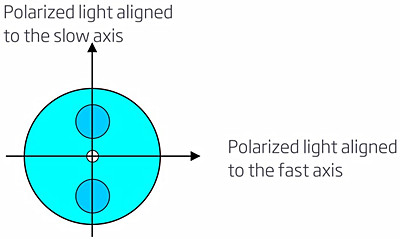

PM fiberConnector Orientation |
Please see the right figure |
Note: The PM fiber and the connector key are aligned to the slow axis,fast axis is blocked

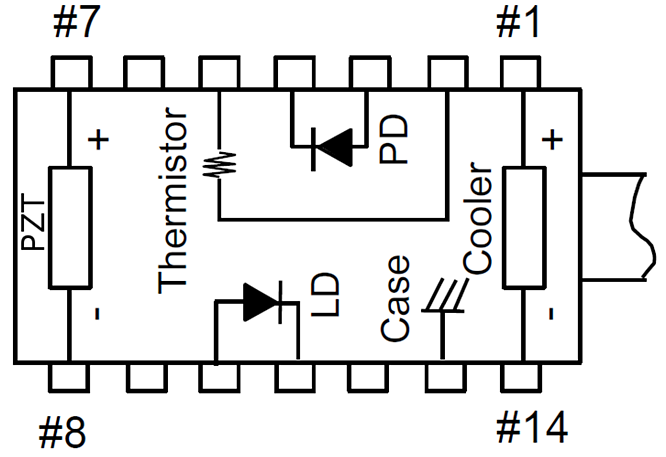

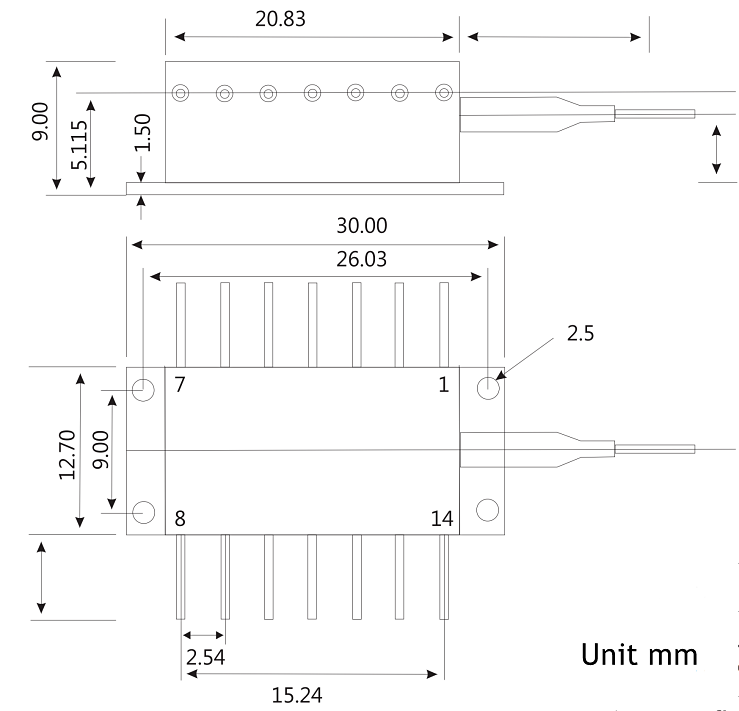

PZT Built Inside
|
1 |
Thermoelectric Cooler (+) |
8 |
PZT tuning - |
|
2 |
Thermistor |
9 |
N/C |
|
3 |
PD Monitor Anode (-) |
10 |
laser Anode (+) |
|
4 |
PD Monitor Cathode (+) |
11 |
Laser Cathode (–) |
|
5 |
Thermistor |
12 |
N/C |
|
6 |
N/C |
13 |
Case Ground |
|
7 |
PZT tuning + |
14 |
Thermoelectric Cooler (–) |
Absolute Maximum Ratings
|
Item |
Unit |
Min |
Typ |
Max |
|
Case Temperature |
℃ |
-40 |
25 |
70 |
|
Chip Temperature |
℃ |
+10 |
25 |
40 |
|
Operating Current |
mA |
0 |
60 |
120 |
|
Forward Voltage |
V |
0.8 |
1.2 |
1.8 |
|
TEC Current |
A |
- |
1.2 |
1.4 |
|
Reverse Voltage（LD） |
V |
- |
- |
1.8 |
BF-PL-NL-□□□□-☆-A8▽-XX-☆
□□□□: Wavelength
0633: 633nm
0780: 780nm
1550: 1550nm
1555: 1555nm
*****
1560: 1560nm
☆: Output Power
A: 10mW
B: 30mW
▽: Linewidth
1: ＜10MHZ
XX: Fiber and Connector Type
SA=SM780+ FC/APC
SP=SM780+ FC/PC
PP=PM780+ FC/PC
PA=PM780+ FC/APC
☆
No PZT: Leave it Blank
PZT: Version please use PZT to replace
